GUITARFACE USB INTERFACCIA PER CHITARRA CAVO JACK REGISTRA MULTITRACCIA

GUITARFACE USB

Interfaccia Midi per Digitalizzare in pochi minuti la propria chitarra! E con il sequencer incluso potrete registrare facilmente fino a 16 traccie, e suonare con voi stessi, o con amici, per creare la vostra musica, inserire ritmi, traccie, registrare idee, Jam, audio da fonte esterna, ecc. ecc. . L’interfaccia USB per chitarra ti permette di suonare e registrare usando ampli modeling ed effetti senza bisogno di altri strumenti oltre alla tua normale chitarra. Compatta, collegata al Jack della tua chitarra elettrica e a un PC o Mac tramite un comune cavo USB, ti consente di suonare con sofisticati software inclusi: incl. IK e il sequencer Samplitude SE.

High-speed for guitarists! This small, icy-white USB audio-interface is a really cool tool for guitar and microphone recordings! In any case, with it´s fast ASIO driver the GUITARFACE USB is fast enough for speed-guitarists !

Features:
16 Bit/48 kHz USB stereo interface
Adjustable TRS stereo-input
HI-Z Guitar/Bass, dynamic MIC
MIC with 48 V phantom power, LINE
Adjustable headphone output
Signal- and peak LED
USB buspowered
"Class Compliant" USB audio interface
ASIO driver for Windows XP/Vista available!
MANUALE IN ITALIANO

Inclusive: USB-cable and PC-software Magix Samplitude SE
Inclusive: IK Multimedia "Amplitube 2 Duo" !!!

"Class Compliant" USB Audio Interface
(WinXP/Vista no drivers necessary)
16 Bit/ 48 kHz resolution LINE stereo interface
HI-Z instrument preamp
MIC preamp with 48V phantom power
Signal and peak indicator LEDs
Adjustable stereo headphone output
Full duplex with compatible recording software
USB powered
Incl. Magix Samplitude SE and IK Multimedia Amplitube 2 Duo
Typical applications:
LINE, instruments and MIC recordings
Low latency playing of VST instruments

OWNER`S MANUAL

Operating Instructions
The Guitarface, we are certain you will be delighted
with its performance and advanced features. Guitarface enables you to easily digitize all your
analog sound sources from any LINE level devices, e.g. music cassette decks or CD players, etc.
With its implemented HI-Z instrument preamp you can easily digitize instruments like electric
guitars and basses. At last the integrated MIC preamp offers you the possibility to make microphone
recordings. In addition to this Guitarface gives you a switchable phantom power for use with
condenser microphones. Please read the instructions to use this phantom power carefully! If you
use it in the wrong way, it may cause damage to your speaker system! Miditech doesn't take any
responsibilty for damage caused by improper use!
Not only does Guitarface offer a simple solution to digitizing analogue sounds, it also gives you the
very best HiFi audio quality. The included recording software Magix "Samplitude SE" offers you
the capability to edit previously digitized music or speech. The software "IK Multimedia Amplitube
2 Duo" gives guitarists some perfect simulated American guitar amps for use as standalone
application or as a VST instrument. The operating instructions will give you some guidance on how
to install and operate your Guitarface functions, also check the section on how to use the free
bundled companion programs - "Magix Samplitude SE" and the amp-simulation from "IK
Multimedia Amplitube 2 Duo".

Guitarface Technical data:
Simple computer connection via USB
"Class Compliant" device - NO driver installation necessary, runs directly under Windows
2000 SP4, Windows XP SP2 and Windows Vista
16 Bit AD/DA Converters
Sample rate 32.0 kHz, 44.1 kHz, 48.0 kHz
Frequency response 20 Hz to 20 kHz, ± 1 dB @ 44.1 kHz sample rate - 20 Hz to 22 kHz, ± 1
dB @ 48.0 kHz sample rate
THD 0.05 % typical. @ -10 dBV, 1kHz
Crosstalk -77 dB @ 0 dBV, 1 kHz
Signal-to-noise ratio A/D 89 dB typical. @ 1 kHz, A-weighted - D/A 96 dB typical. @ 1 kHz,
A-weighted
Dynamic range: >86 dB (A)
Adjustable stereo input for LINE level devices
Stereo output for LINE level devices
HI-Z instrument input
Balanced MIC input and MIC with +48V phantom power input switchable
Adjustable stereo headphone output for headphones
USB Powered, i.e. power supplied via USB connection of the computer
Indicator-LEDs for peak and signal

Connection and operating devices:

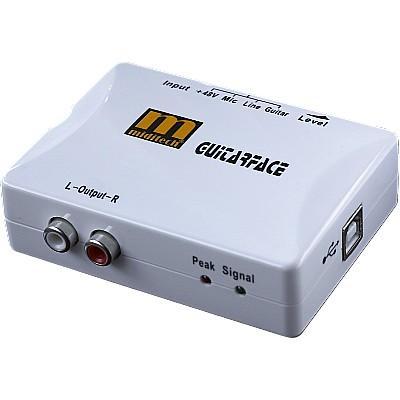

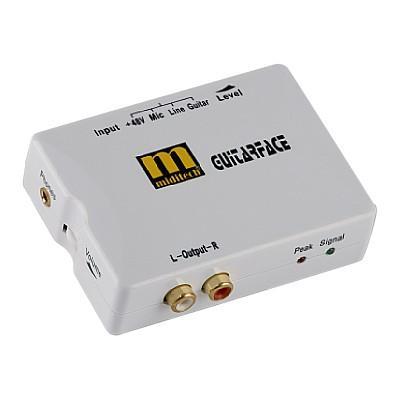

The product case is printed with all relevant information! There is one 6,3mm TRS jack socket and
an adjustment switch for the input level next to it. On this side you find the input switch, it switches
between LINE, instrument, MIC and MIC with +48V phantom power. On the opposite side there
are two light-emitting diodes, the signal (green) and an overdrive (red) LED. On this side you find 2
Phono (RCA) sockets for the output. Connect these LINE out sockets with a regular Phono (RCA)
cable to an amplifier. On the front of the Guitarface you find the 3,5mm TRS jack socket of the
headphone output, the small wheel adjacent to the socket allows you to adjust volume. All outputs,
the LINE out and the headphone out, all provide the same mix. Only in instrument mode the
headphone out carries both PC sound and the instrument signal, you can adjust the input level of the
instrument with the headphone output wheel to monitor the instrument directly. In this mode the
LINE out only carries the PC audio signal.

Connecting the Guitarface to your computer
Connecting the Guitarface to a computer is very easy! Simply connect your Guitarface, with the
included USB cable, to a free USB port on your computer. When the Guitarface is attached the
green LED lights up briefly to signal a good power supply to the Guitarface. The installation under
Windows will then take place automatically, a few seconds after connecting to your computersystem
it will find a "USB Audio Codec" or "USB Audio Device", which can be used in each
application and adjusted in the system control. Using the USB connection your digitized audio data
can now be transferred to your computer!

LINE input
Switch the input adjustment switch to "LINE". Connect your Player device with a stereo cable to
the 6,3mm TRS jack socket marked "Input". Now adjust the input-level with the little wheel next to
the input socket. You can connect any devices with a LINE level output, e.g. Tape deck or CD
players.

Instrument input
Switch the input adjustment switch to "GUITAR". Connect your electric guitar or bass with a mono
cable to the 6,3mm TRS jack socket marked "Input". Now adjust the input-level with the little
wheel next to the input socket. Note: the mono instrument will be played on both sides of the
headphone out.

MIC input
Switch the input adjustment switch to "MIC". Connect your dynamic microphone to the 6,3mm
TRS jack socket marked "Input". Now adjust the input-level with the little wheel next to the input
socket.

MIC with +48V phantom power input ATTENTION!
Please firstly connect your condenser microphone with a symmetric microphone cable to the 6,3mm
TRS jack socket marked "Input". Switch the input adjustment switch to "+48V". Please note, that
switching the phantom power on makes a noise, that can damage your speaker system. Please
REDUCE THE LEVEL of your amplifier BEFORE switching to "+48V"! After one minute the
phantom power is ready to work! Now adjust the input-level with the little wheel next to the input
socket.

Signal and peak indicator LEDs
The two LEDS indicate an incoming audio signal to the Guitarface. With a correct level the green
signal LED lights up. The red peak LED only lights up when the signal level is too high, use the
input level wheel to adjust the signal level down to just below peak

LINE-Output (Stereo RCA Jacks)
Connect your amplifier to these outputs for monitor recordings or sounds from the computer.

Headphone-Output (Stereo Mini Jack 3,5 mm)
Connect your headphone to this output to monitor recordings or sounds from the computer.

References to the driver attitude under Windows audio sequencer programs such as Cubase,
sonar or Samplitude:
The Guitarface runs under hard disk recording programs in the "Full Duplex Mode" (simultaneous
admission and rendition) usually only with ASIO Multimedia drivers, the Windows WDM driver
only permits one direction (admission or rendition) at the same time. We recommend that you
download the Guitarface ASIO driver from our homepage www., or use the "ASIO for
ALL" driver for the Audioface under Windows XP. The ASIO driver makes it possible to use
monitoring- and full duplex- modes. Additionally, the latency time of the audio signal will be
substantially reduced.

Hard disk-recording software "Magix Samplitude SE"
The bundled software, which is shipped with the Guitarface, is special software for multiple hard
disk recording, cutting and editing recorded music and speech.

Regarding the driver set-up in "Samplitude SE"
To set-up the drivers for Guitarface in "Samplitude SE", click the menus "options" and "system
options" in the "audio set-up". If you have installed an ASIO driver, you can adjust this here as a
"record and play" device - please choose the driver for Guitarface. Below this the actual latency
time will be displayed after selecting the driver, also, by clicking the button "Attitudes" you can
adjust the buffer size and the latency time of the driver itself. The latency time is system-dependent
and is different in different personal computers. Choose a value as low as possible, if you adjust too
low you hear interference noises, set the buffer and latency time of the driver just above the noise
threshold.

Setting up "Amplitube 2 Duo" as a VST effect in "Samplitude SE"
To set-up the ampsimulation "Amplitube 2 Duo" in "Samplitude SE", click the menus "options" and
"system options" in the "effects set-up". In "VST/DirectX setup" you can adjust the VST plugin
folder, please choose the folder, where the VST version of "Amplitube 2 Duo" is installed.
In a track of Samplitude you can now choose under "plugins" to use the virtual amplifiers of
"Amplitube 2 Duo"!

We hope you get a lot of enjoyment from this exciting program! After installation and activation via
www.magix.de this version is fully functioning.

Guitar amp simulation software "IK Multimedia Amplitube 2 Duo"
IK Multimedia`s software "Amplitube 2 Duo" is a guitar amp simulation with 2 different amplifiers
and 30 presets of american guitar amplifiers. You can use it standalone or as a VST effects plugin,
with Samplitude, Cubase, Sonar or any other VST compatible sequencer sofware.
If you run "Amplitube 2 Duo" standalone, please download and install our ASIO driver for the

Guitarface first from our homepage.
You can setup the Guitarface with it´s ASIO
driver in the "settings" and "audio setup" menu. Here you can adjust the sample buffers, which has
direct influence to the latency times of the Guitarface. Choose a value as low as possible, if you
adjust too low you hear interference noises, set the buffer and latency time of the driver just above
the noise threshold.

Further information on extensions, updates and other products from Miditech please check out our
homepage http://

Changes of the technical data and the design are possible
No liability is assumed for misprints

Price: €64,95
€64,95
SKU: 6365
