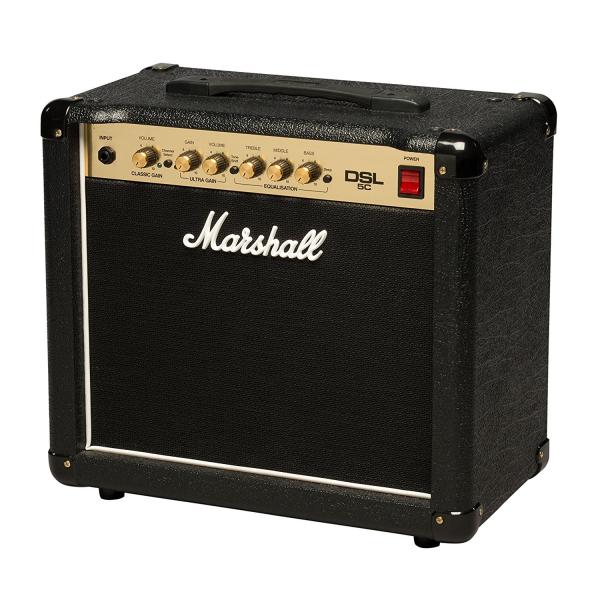

MARSHALL DSL5C AMPLIFICATORE VALVOLARE CHITARRA 5W AUX IN SEND RETURN USCITA CUFFIA

MARSHALL DSL 5C , AMPLIFICATORE COMPLETAMENTE VALVOLARE PER CHITARRA ELETTRICA .

5 WATT / 1 WATT

VALVOLE : 3 X 12AX7

VALVOLA : 1X 12BH7

SEND / RETURN

PHONE OUT

AUX IN

16 SPEAKER OUTPUT : PER COLLEGARE LO SPEAKER INTERNO, O SPEAKER ESTERNO DA 16 OHM.

CON I 5 WATT POTETE ALZARE IL VOLUME A 10, E FARE ASCOLARE LA DISTORSIONE VALVOLARE IN TUTTA LA SUA POTENZA.

IDEALE PER CHI SUONA IN CASA, E PICCOLI AMBIENTI.



2 Canali: Classic Gain & Ultra Gain
Valvole: 3x ECC83, 1x 12BH7 / ECC99
Speaker: Celestion Ten-30
Switch per commutare l'uscita 5W / 1W
EQ condiviso Bassi, Medi, Acuti
Interruttori Tone Shift & Deep per una maggiore versatilità timbrica
Uscita Cuffie / Emulated Line
Ingresso Audio
FX Loop
LED di stato dei canali
PEDALE, Footswitch incluso (pulsante singolo)

Reissue series - authentic DSL sound
Power: Low power circuit from 5 W to 1 W
2 footswitchable channels with classic gain and ultra gain
Equipment: 10" Celestion Ten-30 loudspeaker
Preamp tubes: 3 x ECC83
Power tube: 1 x 12BH7 / ECC99
Tone-shift key for center configuration
Bass switch that complements a resonant bass boost
Independent volume and gain controls for both channels
Common sound control for treble, mid and bass
Emulated line output
Serial FX loop
Includes footswitch



TECHNICAL SPECIFICATION

Model
DSL5CR

Range
DSL

Technology
Valve

Channels
2 (Split)

ELECTRONICS

Output wattage
5W (with power reduction option, 1W)

Outputs
1 x 1/4" jack speaker output, 16Ω load only, 1 x 3.5mm jack emulated out

Inputs
1 x 1/4" jack instrument input, 3.5mm jack Aux in, footswitch

Controls
Classic gain channel (gain, volume), channel select, ultra gain channel (gain, volume), tone shift button, treble, middle, bass, deep EQ shift, low power option (on rear)

Effects

Effects loop

Yes, series, send/return

SPEAKERS
Speaker configuration
1x10"

Speaker model
Celestion Ten-30 speaker (16Ω, 30w)

Unit impedance
16Ω

VALVES

Preamp valves
2 x ECC83

Power amp valves
1 x 12BH7

ACCESSORIES
Footswitch
PEDL-90012 included

Cable
Detachable power cable included

DIMENSIONS (INCLUDING FEET AND HANDLE)

Weight :12.7 kg / 28 lbs

Width : 455 mm / 17.9"

Height : 420 mm / 16.5"

Depth : 240 mm / 9.4"
